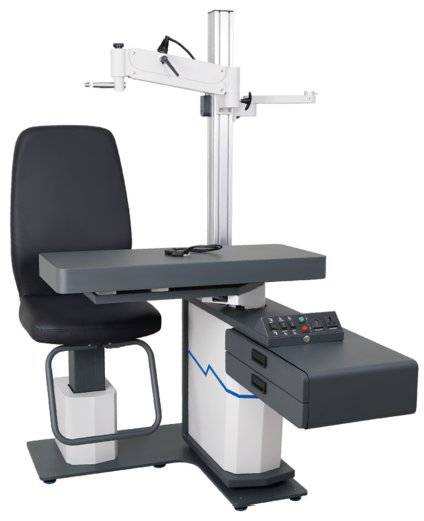

OV-500 is Ophthalmic Category: Dual Dedicated Instrument Space Table
Available in two configurations: the OV-500 with standard phoropter arm and the OV-500-1 with automatic phoropter arm.
Overall Dimensions:
- Unit Size (with chair): 1100mm (L) × 1500mm (W) × 1800mm (H)
- Fully Extended Installation Space: 1450mm (L) × 1680mm (W) × 1800mm (H)
Tabletop Features:
- Tabletop Size: 960mm × 400mm
- Tabletop Height: 920mm
- Tabletop Rotation Range: 0–90°
- Tabletop Left/Right Movement Range: 0–340mm
- Swing Arm Vertical Swing Angle: ±25°
- Swing Arm Horizontal Rotation: 0–100°
Seating & Load Capacity:
- Chair Height: 510–660mm
- Chair Forward/Backward Movement Range: ±92mm
- Tabletop Load Capacity: 100kg
- Chair Load Capacity: 150kg
Storage:
- Upper Drawer: 540mm × 360mm × 60mm
- Lower Drawer: 540mm × 360mm × 70mm
Electrical & Lighting:
- Illumination Power: DC 24V, 3W
- Maximum Power: 150W
The OV-500 Examination Unit is a practical and reliable ophthalmic workstation designed for optometry practices, ophthalmology clinics and healthcare environments. Combining a motorised patient chair, integrated examination lighting and a dual-instrument table, the OV-500 provides an efficient workspace for comprehensive eye examinations.

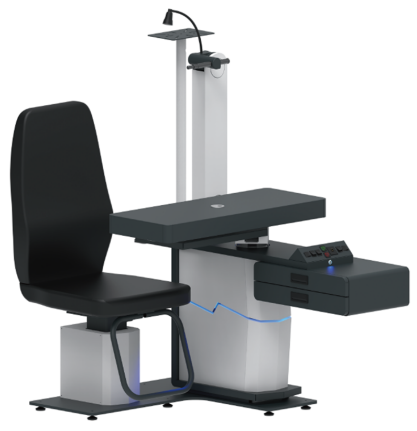

The OV-500-1 adds an automatic phoropter arm for powered phoropter positioning during examinations. Both models are designed around practitioner ergonomics, patient comfort and efficient instrument positioning.
An MC-W upgraded chair is available as an optional upgrade on either model.

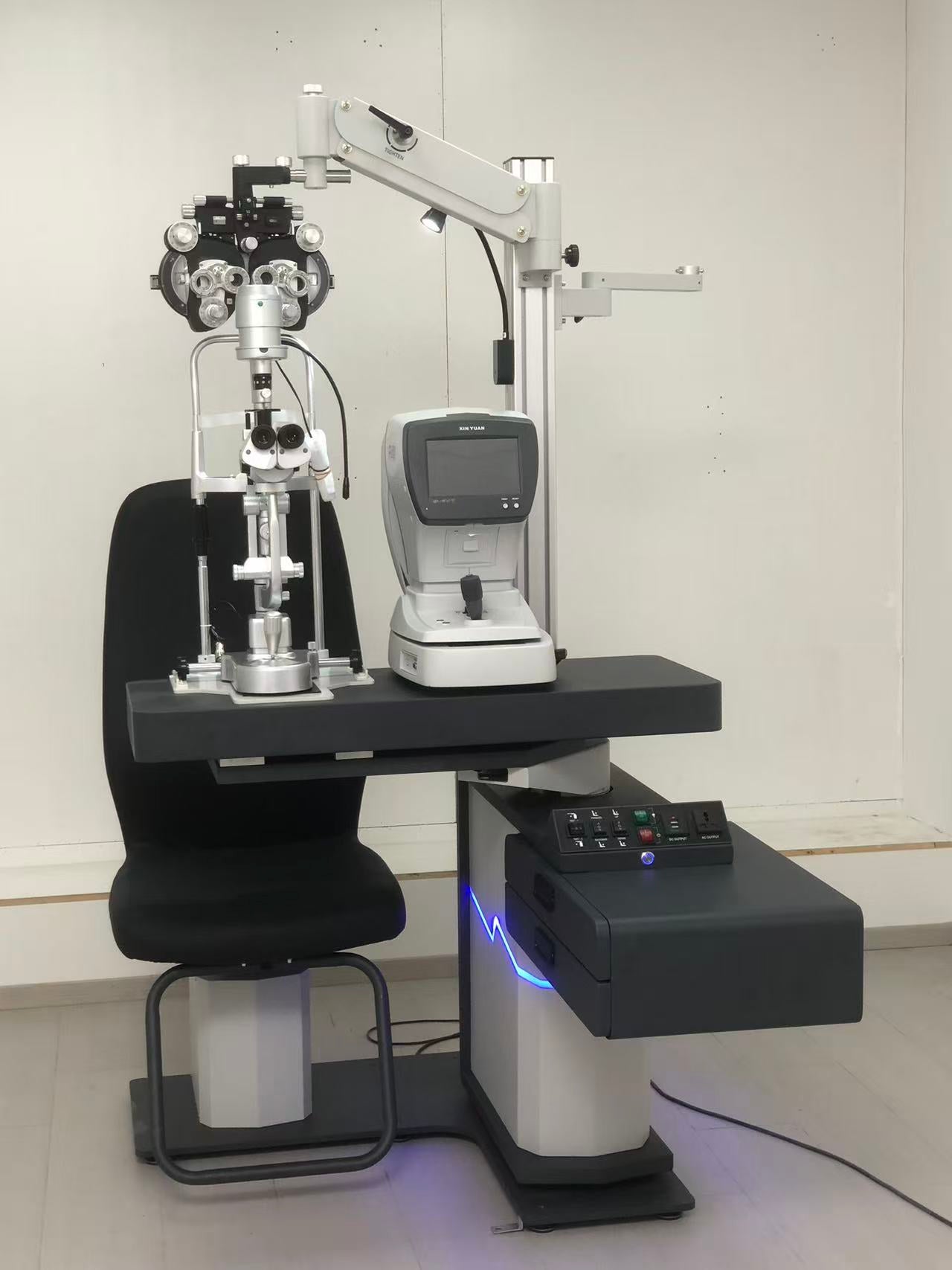

Ideal for use with slit lamps, auto-refractors, keratometers, lensmeters, phoropters and other ophthalmic diagnostic equipment. Of which, none are included.
