Overall Dimensions:
- Unit Size: 1200mm (L) x 1055mm (W) x 1850mm (H)
- Packing Size: 1200mm (L) x 1100mm (W) x 1050mm (H)
- Packing Volume: 1.38 cubic metres
- Gross Weight: 200kg
Tabletop Features:
- Table Size: 890mm x 405mm

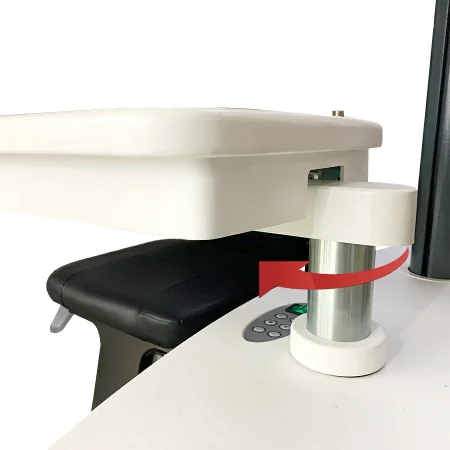

- Table Rotation Angle: 90°
- Table Travel Distance: 335mm
- Swing Arm Oscillation Angle: ±30°
- Swing Arm Rotation Range: 60°
Seating & Load Capacity:
- Seat Rotation Angle: 45°
- Maximum Seat Load: 250kg
- Maximum Armrest Load: 100kg
- Seat Reclining Angle: 120° - 140°
- Chair Height Adjustment: 550mm - 700mm
- Seat Travel Distance: 150mm
Electrical & Lighting:
- Integrated LED Lamp: 24V, 5W (White Light)
- Electric Voltage: AC 240V / 110V, 50/60Hz

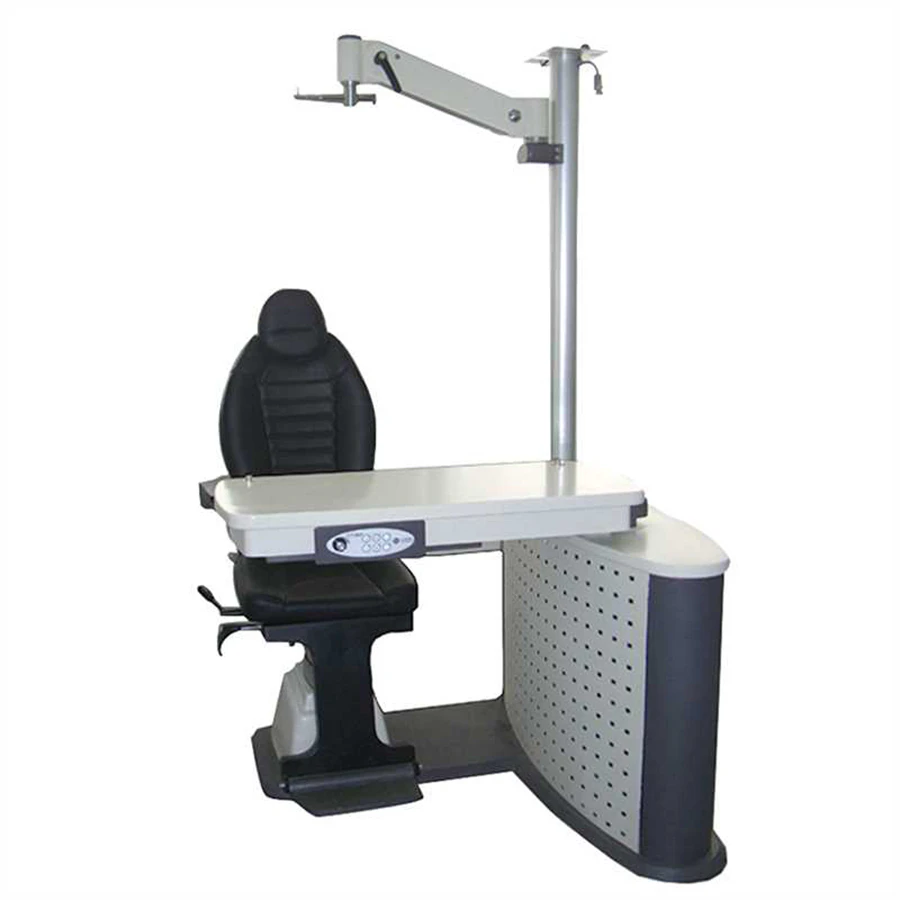

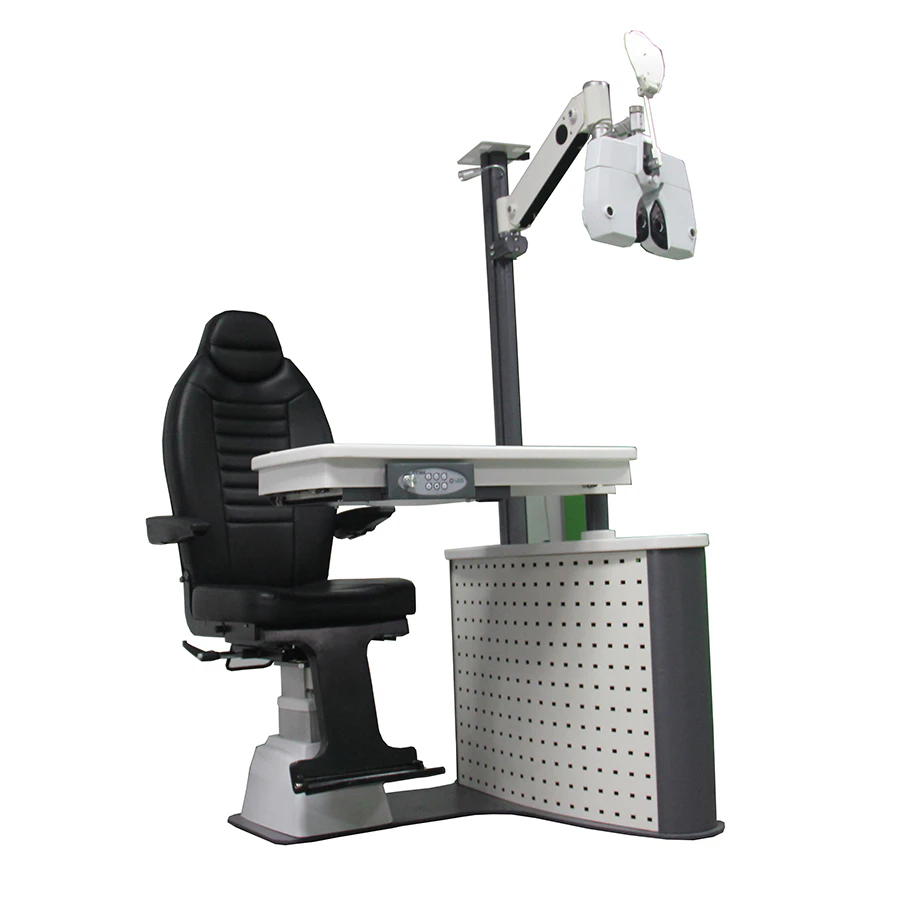

The OV-360 Examination Unit is a practical and reliable ophthalmic workstation designed for optometry practices, ophthalmology clinics, and healthcare environments. Combining a motorised patient chair, integrated LED examination lighting, and a rotating dual-instrument table, the OV-360 provides an efficient workspace for conducting comprehensive eye examinations.
Designed with both practitioner ergonomics and patient comfort in mind, the unit features smooth chair height adjustment, a reclining backrest, seat rotation functionality, and generous load capacities. Its compact footprint makes it suitable for consulting rooms where functionality, durability, and ease of use are essential.

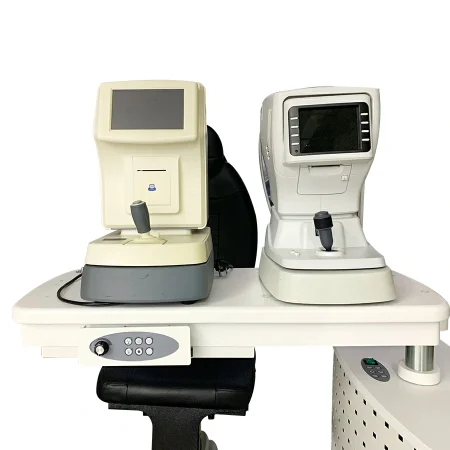

Ideal for use with slit lamps, auto-refractors, keratometers, lensmeters, and other ophthalmic diagnostic equipment.
